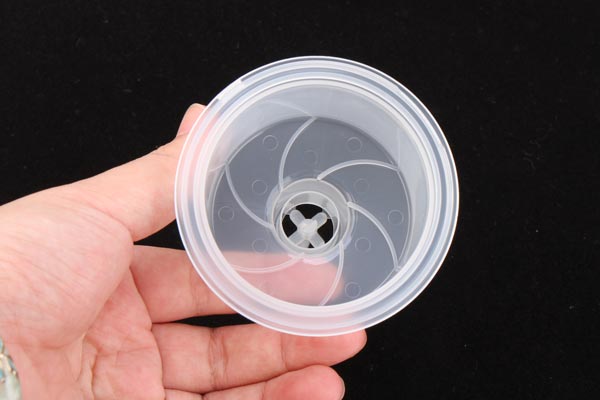

In the production process of medical injection-molded parts, the issue of deformation and springback has always been a persistent challenge for manufacturers. Deformation and springback not only affect the dimensional accuracy of products but may also have a significant impact on their functionality and safety. This article will delve into how to address the problem of deformation and springback in medical injection-molded parts from aspects such as mold design, material selection, process parameter adjustment, and post-processing.

I. Optimize Mold Design

The mold is the "soul" of injection molding, and its design rationality directly affects product quality. To tackle the problem of deformation and springback, mold design can be optimized in the following ways:

1. Gate Location and Quantity: Reasonably set the gate location and quantity to ensure uniform filling of the melt into the cavity, avoiding stress concentration caused by local underfilling or overly rapid cooling.
2. Cooling System: Increase cooling channels, especially in thick-walled areas, to ensure consistent cooling rates across different parts of the mold and reduce internal stress. At the same time, optimize the layout of cooling water circuits to ensure uniform distribution of cooling water and prevent local overheating or overcooling.
3. Ejection System: Optimize the design of the ejection system to ensure uniform distribution of ejection forces and prevent product deformation due to improper ejector pin placement. For large or thin-walled components, a combination of multiple elements or a combination of pneumatic/hydraulic and mechanical ejection can be used.

II. Select Appropriate Materials

Different plastics have vastly different shrinkage rates and characteristics. Selecting the right material is crucial for solving the problem of deformation and springback. For medical injection-molded parts, the following factors should be prioritized:

1. Shrinkage Rate: Choose materials with low and stable shrinkage rates, such as certain high-performance engineering plastics, to minimize dimensional changes during the molding process.
2. Thermal Stability: Ensure that the material does not decompose or deteriorate easily at high temperatures, maintaining stable physical and chemical properties.
3. Biocompatibility: Medical injection-molded parts need to come into direct or indirect contact with the human body, so the material must comply with biocompatibility standards to avoid adverse effects on the human body.

III. Adjust Injection Molding Process Parameters

The setting of injection molding process parameters directly affects the molding quality of products. To address the problem of deformation and springback, process parameters can be adjusted in the following ways:

1. Reduce Mold and Melt Temperatures: Minimize the temperature difference during cooling to reduce shrinkage stress. However, it should be noted that excessively low mold temperatures may lead to poor melt flowability, affecting filling performance.
2. Extend Packing Time: Ensure sufficient filling of the cavity with the melt, reducing internal voids and preventing melt backflow. The packing time should be reasonably set according to the product structure and material characteristics.
3. Increase Injection Speed and Pressure: On the premise of ensuring filling performance, appropriately increase the injection speed and pressure to achieve uniform material distribution and reduce pressure differences at different locations. However, excessive pressure should be avoided to prevent an increase in internal stress within the product.

IV. Improve the Cooling Process

The cooling stage is a high-risk period for deformation and springback. By improving the cooling process, deformation and springback can be effectively reduced:

1. Segmented Cooling: For products with uneven wall thicknesses, control the cooling rate in different regions to ensure uniform cooling across all parts.
2. Extend Cooling Time: Allow sufficient time for the product to stabilize its shape and prevent deformation due to insufficient cooling.
3. Reasonably Set Mold Temperature: Avoid excessively cold mold temperatures that may cause the product to be cold on the outside and hot on the inside, increasing the risk of post-deformation.

V. Optimize Product Design and Post-Processing

1. Uniform Wall Thickness: Strive to make the product wall thickness as uniform as possible. When there are changes in wall thickness, use wall thickness transition designs to reduce stress concentration caused by uneven wall thickness.
2. Heat Treatment: Release internal stress through heat treatment methods such as baking to restore the product's shape. For some materials, heat treatment can also improve their dimensional stability.

FAQ

Q1: What are the main causes of deformation and springback in medical injection-molded parts?
A1: The main causes include unreasonable mold design, improper material selection, incorrect process parameter settings, and poor control of the cooling process.

Q2: How can we determine whether there is a problem of deformation and springback in medical injection-molded parts?
A2: We can measure the product dimensions, observe the product shape, and conduct functional tests to determine whether there is a problem of deformation and springback.

Q3: What is the impact of heat treatment on deformation and springback in medical injection-molded parts?
A3: Heat treatment can effectively release internal stress within the product, reducing the risk of deformation and springback and improving product dimensional stability. However, it should be noted that the heat treatment temperature and time should be reasonably set according to the material characteristics.
