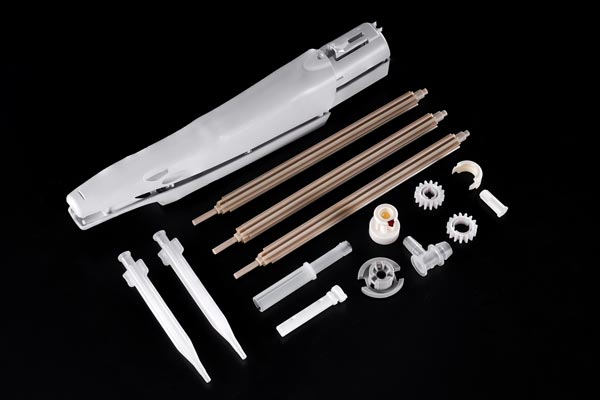

Medical injection-molded parts are critical components of modern medical devices, with their performance directly influencing product safety, reliability, and service life. Precise control of injection molding process parameters—such as temperature, pressure, and speed—is essential for ensuring medical injection-molded parts meet stringent quality standards. This article systematically analyzes the impact of these parameters on part performance from the perspective of process parameter classification, incorporating the unique requirements of the medical industry, and proposes optimization strategies.

1. Core Classification and Mechanisms of Injection Molding Process Parameters

Injection molding process parameters can be categorized into four groups: temperature, pressure, speed, and time. Their synergistic effects determine the final performance of injection-molded parts.

1.1 Temperature Parameters: The "Regulator" of Melt Flow and Crystallization Behavior

• Barrel Temperature: Directly affects the melting state of plastics. For example, polycarbonate (PC) requires a barrel temperature of 280–320°C. Insufficient temperature leads to poor flowability and short shots, while excessive temperature may cause decomposition and harmful substances.
• Mold Temperature: Controls the cooling rate and crystallinity of parts. For semi-crystalline plastics like polypropylene (PP), mold temperature must be adjusted based on wall thickness: higher temperatures (e.g., 70°C) for thin-walled parts to aid filling, and lower temperatures (e.g., 20°C) for thick-walled parts to prevent internal stress.
• Nozzle Temperature: Should be slightly lower than the barrel temperature to prevent drooling while avoiding blockages. For high-density polyethylene (HDPE), the nozzle temperature is typically set at 220–240°C.

1.2 Pressure Parameters: The "Balance Bar" of Filling Power and Density

• Injection Pressure: Overcomes melt flow resistance to ensure complete mold filling. Medical-grade polyamide (PA), with poor flowability, requires an injection pressure of 120–150 MPa to avoid filling defects.
• Holding Pressure: Compensates for melt shrinkage during cooling to prevent sink marks and dimensional deviations. For pacemaker housings, holding pressure must be precisely controlled at 50–60% of injection pressure to maintain wall thickness tolerances ≤ ±0.005 mm.
• Back Pressure: Affects plasticization efficiency and melt uniformity. Low back pressure causes uneven material density and bubbles, while excessive back pressure accelerates equipment wear.

1.3 Speed Parameters: The "Double-Edged Sword" of Filling Efficiency and Surface Quality

• Injection Speed: Fast injection reduces cooling at the melt front and prevents surface flow marks, but excessive speed may trap air and form bubbles. For transparent blood collection tubes, a "slow-fast-slow" multi-stage injection speed balances efficiency and surface quality.
• Screw Speed: Influences plasticization capacity and shear heat generation. High screw speeds (e.g., 1.3 m/s) shorten plasticization time but may degrade materials, requiring coordinated back pressure control.

1.4 Time Parameters: The "Trade-off Point" of Cooling Solidification and Production Efficiency

• Cooling Time: Accounts for 60–70% of the total molding cycle and directly impacts dimensional stability and internal stress. Medical consumables like infusion set drip chambers require extended cooling times (15–20 seconds) to prevent post-molding deformation.
• Holding Time: Must continue until the gate solidifies to avoid sink marks. For orthopedic implants, holding time is dynamically adjusted based on material shrinkage, typically 2–5 seconds.

2. Special Performance Requirements and Process Challenges in Medical Injection Molding

The medical industry imposes stricter performance demands on injection-molded parts than general industrial products, primarily in the following areas:

2.1 Biocompatibility: Dual Safeguards of Material and Process

• Material Selection: Must comply with ISO 10993 standards. For example, medical-grade polyether ether ketone (PEEK) must pass 12 tests, including cytotoxicity and sensitization.
• Process Control: Avoid thermal degradation of materials. Polyvinyl chloride (PVC) releases hydrogen chloride above 180°C, necessitating strict temperature control during processing.

2.2 Dimensional Accuracy: Achieving Micron-Level Tolerances

• Mold Precision: Ultra-precision five-axis machining centers ensure cavity dimensional tolerances ≤ ±0.005 mm.
• Process Optimization: Design of Experiments (DOE) identifies optimal holding pressure and cooling time combinations. For insulin syringe components, multi-stage holding (3–5 pressure stages) achieves precise dimensional control.

2.3 Mechanical Properties: Balancing Strength and Toughness

• Material Modification: Glass fiber reinforcement enhances tensile strength (e.g., PA + 30% GF reaches 150 MPa), but injection speed must be optimized to prevent fiber breakage.
• Defect Control: Bubbles and sink marks reduce effective load-bearing areas. Increasing holding pressure (e.g., from 60 MPa to 80 MPa) and cooling time (extended by 30%) minimizes defects.

3. Root Causes of Common Defects and Process Parameter Solutions

Medical injection-molded parts often suffer from defects like flash, sink marks, and weld lines, which are typically linked to process parameter mismanagement. Targeted optimizations are required:

3.1 Flash: The Clash Between Clamping Force and Injection Pressure

• Cause: Excessive injection pressure (e.g., >20% of equipment rating) or worn mold parting surfaces.
• Solution: Reduce injection pressure to 80–100 MPa and adopt multi-stage holding (high pressure followed by low pressure) to limit melt overflow.

3.2 Sink Marks: The Conflict Between Insufficient Holding Pressure and Uneven Cooling

• Cause: Low holding pressure (e.g., <40 MPa) or inadequate cooling time (e.g., <10 seconds).
• Solution: Increase holding pressure to 60–80 MPa, extend cooling time to 15–20 seconds, and optimize mold cooling water channel design.

3.3 Weld Lines: The Synergy of Gate Design and Temperature Control

• Cause: Insufficient gate count or low injection temperature (e.g., <200°C).
• Solution: Increase gate count to 2–4, raise injection temperature to 220–240°C, and use high-speed injection (e.g., >150 mm/s) to reduce melt front cooling.

4. Future Trends in Process Parameter Optimization

As the medical industry demands higher performance from injection-molded parts, process parameter optimization is evolving toward intelligence and precision:

4.1 AI-Driven Parameter Prediction
Long Short-Term Memory (LSTM) neural networks predict optimal process parameters based on historical production data. For example, one enterprise improved first-pass yield from 82% to 97% and reduced cycle time by 20% using AI algorithms.

4.2 Online Monitoring and Closed-Loop Control
Infrared thermometers and pressure sensors enable real-time monitoring of melt temperature and injection pressure, with PID control systems automatically adjusting parameters. One medical consumable production line reduced dimensional variation from ±0.1 mm to ±0.03 mm using closed-loop control.
