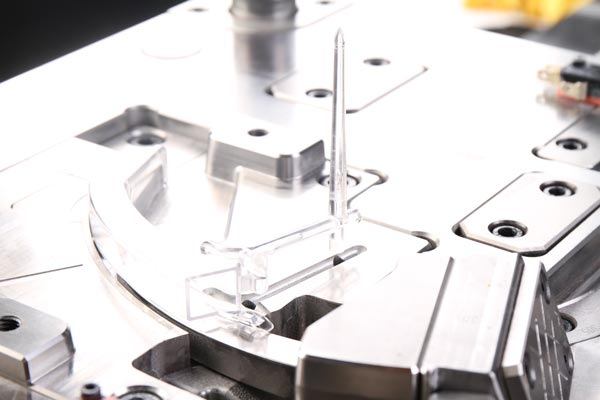

Medical molds, as the core tools for medical device production, directly impact product quality and patient safety with their precision and stability. In an era where the medical industry has increasingly stringent requirements for mold performance, a scientific maintenance and care system has become crucial for extending mold life and reducing production costs. This article systematically outlines the core techniques for maintaining and caring for medical molds based on industry practices and cutting-edge technologies.

I. Daily Maintenance: Proactive and Meticulous Management

1. Cleaning and Disinfection: Guardians of a Sterile Environment

Medical molds require a tiered cleaning strategy:

• Surface Cleaning: Use medical-grade alcohol or specialized mold cleaning agents along with soft-bristled brushes to remove residues from the mold cavity. For instance, a medical device company employs ultrasonic cleaning technology to eliminate 0.01mm-sized particles, ensuring a mold cavity finish of Ra0.2μm.
• Cooling System Maintenance: Clean the cooling water channels with a high-pressure air gun every week and perform backflushing monthly to remove scale. A case study on an injection mold shows that uncleaned water channels can cause mold temperature fluctuations of ±5℃, leading to product dimensional deviations exceeding standards.
• Sterilization: For molds used in implant production, use ethylene oxide or plasma sterilization processes and establish a microbial testing archive.

2. Lubrication Maintenance: The Lifeblood of Moving Parts

• Lubricant Selection: For high-temperature operations, choose polytetrafluoroethylene (PTFE) dry film lubricants; for low-temperature environments, use lithium-based greases. A die-casting mold company extended the life of its slides by three times by switching to nano-lubricants.
• Lubrication Cycle Management: Implement a "three-frequency" lubrication system:
  • After each shift: Apply lubricant to high-frequency moving parts such as ejector pins and guide posts.
  • Weekly: Perform comprehensive lubrication on inclined top mechanisms.
  • Monthly: Conduct in-depth lubrication on mold frame guide rails.

3. Visual Inspection: An Early Warning System for Defects

Adopt the "five-look" inspection method:

• Look at the surface: Use a 50x magnifying glass to detect mold cavity cracks.
• Look at the fit: Measure the clearance of the parting surface with a feeler gauge (standard ≤0.02mm).
• Look at the movement: Manually operate to check if the slides and ejector strokes are smooth.
• Look at the labels: Verify the mold history card against the actual condition.
• Look at the environment: Check the storage temperature and humidity (recommended 20±2℃, humidity ≤60%).

II. Periodic Maintenance: In-Depth Practice of Preventive Maintenance

1. Precision Restoration Projects

• 3D Measurement: Use a coordinate measuring machine every quarter to detect core dimensions and establish a wear curve model. A company reduced unplanned downtime by 70% through data analysis to predict mold life.
• Electrical Discharge Machining (EDM) Repair: For wear depths ≤0.5mm, use EDM welding to maintain a hardness of HRC48-52.
• Surface Treatment: Perform nitriding treatment on the mold cavity every six months to form a 0.2mm hardened layer and improve wear resistance.

2. Systematic Testing

• Cooling Efficiency Testing: Use an infrared thermal imager to detect mold temperature distribution, ensuring a temperature difference ≤3℃. A case study shows that uneven cooling can increase product warping by 40%.
• Hydraulic System Testing: Check the tightness of hydraulic cylinders monthly, with a pressure decay rate of ≤5% per year.
• Electrical System Testing: Test the accuracy of mold temperature controllers every six months, with an error tolerance of ±1℃.

3. Component Replacement Strategies

Establish a "three-color management" system:

• Green components: Standard parts (such as bolts and springs) are replaced according to their life cycle.
• Yellow components: Wear parts (such as seals and heating tubes) are replaced based on usage frequency.
• Red components: Core parts (such as mold cavities and cores) are replaced according to inspection results.

III. Fault Handling: Rapid Response Repair Techniques

1. Common Fault Diagnosis Matrix

2. Emergency Maintenance Process

Implement a "30-minute response mechanism":

1. On-site assessment: Determine the fault level within 5 minutes.
2. Isolation treatment: Complete mold disassembly within 10 minutes.
3. Repair implementation: Complete temporary repairs (such as grinding and welding) within 15 minutes.
4. Verification testing: Confirm repair effectiveness through first-article inspection.

IV. Digital Management: A New Paradigm for Intelligent Maintenance

1. Internet of Things (IoT) Monitoring System

Deploy temperature, pressure, and vibration sensors to achieve:

• Real-time monitoring of mold operation status.
• Automatic generation of maintenance work orders.
• Predictive maintenance reminders (e.g., warning of seal replacement 30 days in advance).

2. Digital Twin Technology

Build a virtual mold model to enable:

• Simulation and optimization of process parameters.
• Visualization of the wear process.
• Virtual verification of repair plans.

3. Blockchain History Management

Establish an immutable mold life cycle archive, including:

• Usage frequency statistics.
• Maintenance record tracing.
• Spare part replacement history.
• Quality accident correlation analysis.

V. Typical Case Study

Maintenance practice of a cardiac stent mold:

1. Problem: Microcracks appeared on the product surface, and the yield rate dropped to 82%.
2. Diagnosis: Metallographic testing revealed thermal fatigue cracks in the mold cavity.
3. Treatment:
   • Repair the cracks using laser cladding technology.
   • Optimize the cooling water channel layout (change from direct flow to spiral flow).
   • Adjust the molding cycle (reduce the holding time by 20%).
4. Effect: The yield rate recovered to 99.5%, and the mold life was extended by two times.

Conclusion

The maintenance and care of medical molds have shifted from traditional "post-failure repair" to "predictive maintenance." By establishing a three-dimensional system of "daily meticulous maintenance + periodic in-depth care + intelligent monitoring and early warning" and incorporating digital management tools, companies can reduce the full life cycle cost of molds by over 30% while keeping product defect rates below 0.1%. In the context of high-quality development in the medical industry, these maintenance techniques will become an essential part of a company's core competitiveness.
