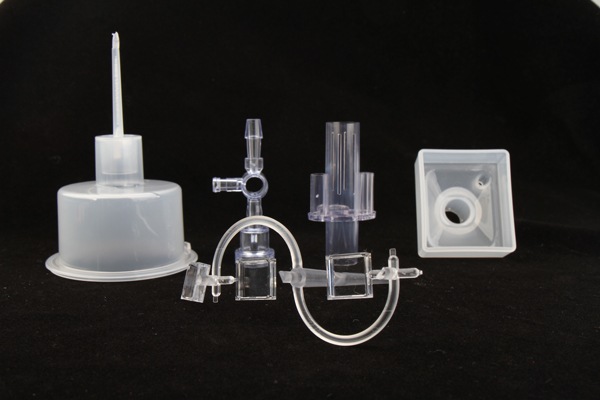

In the medical device manufacturing sector, precision injection molding of small medical housings is critical for ensuring equipment performance and safety. These products typically feature micro-scale dimensions, complex structures, and specialized material requirements, imposing stringent demands on molding accuracy, stability, and cleanliness. This article systematically analyzes key technical challenges and proposes targeted solutions based on industry practices.

1. Key Process Challenges

1.1 Mold Design and Manufacturing Precision Deficiencies
Precision medical housings require mold accuracy at the micrometer or even sub-micrometer level. For example, pacemaker housings demand wall thickness tolerances of ±0.005 mm. Errors in CNC machining or tool wear can directly cause dimensional deviations. Additionally, micro-mold runner design must balance melt filling and pressure equilibrium; excessively narrow or long runners risk material degradation or incomplete filling.

1.2 Material-Process Parameter Conflicts
Specialized engineering plastics like PPSU, PEEK, and LSR (liquid silicone rubber) have narrow processing windows. PPSU’s high melting temperature (330–360°C) necessitates custom high-temperature injection machines to prevent decomposition. LSR’s ultra-low viscosity (5,000–50,000 mPa·s) makes it prone to turbulence during micro-channel (inner diameter <1 mm) molding, leading to bubble rates exceeding 0.1%.

1.3 Venting System vs. Micro-Scale Replication Trade-offs
Microstructures (e.g., 0.1 mm needles, 50 μm channels) require mold surface roughness ≤0.02 μm, but ultra-smooth surfaces reduce venting capacity, causing trapped gas defects. For instance, insulin pump silicone pistons with sulfur residue from cleaning agents exhibited a 40% tacky surface rate due to incomplete vulcanization.

1.4 Cleanliness vs. Production Efficiency Conflicts
Medical housings must be manufactured in ISO Class 7 cleanrooms, but micro-molding’s large runner volume (up to 90% of total injection) increases material waste. Thin-walled parts (e.g., 0.2 mm respiratory masks) require ejection forces <5 N; without diamond-like carbon (DLC) coating, friction coefficients of 0.2 cause tearing.

2. Systematic Solutions

2.1 Full-Cycle Mold Control

• Design Optimization: Use CAE simulation to optimize runner diameter (Φ0.8–1.2 mm) and length-to-diameter ratio (L/D ≤15), combined with conformal cooling channels (diameter 2–3 mm, 3–5 mm from cavity) to maintain mold temperature uniformity (±0.5°C).
• Advanced Manufacturing: Employ ultra-precision five-axis machining centers with laser etching to create 0.03 mm-deep flow guides, reducing flow resistance variation to <3%.
• Surface Treatment: Apply DLC coatings (1–3 μm thick) to reduce friction coefficients to 0.05, enabling damage-free ejection of thin-walled parts via pneumatic assistance (0.3 MPa).

2.2 Material-Process Synergy

• Material Modification: Add 5–10% nano-silica (10–20 nm) to LSR to reduce shrinkage from 2–3% to 1.8% while stabilizing hardness (±1 Shore A).
• Multi-Stage Injection Control: Adopt a "medium-speed runner filling → slow gate filling → fast injection → low-pressure slow packing" sequence to eliminate silver streaking. For example, infusion pump valve plates achieved ±0.01 mm thickness tolerance using this method.
• Vulcanization Dynamics Control: Determine optimal LSR curing parameters (170°C × 25 s) via DSC analysis, achieving a crosslink density of 2.5×10⁻⁴ mol/cm³ to prevent under/over-curing.

2.3 Intelligent Process Monitoring

• Real-Time Inspection: Deploy machine vision systems (0.001 mm resolution) for full inspection of micro-needle arrays (0.1 mm diameter), reducing defect rates from 0.5% to 0.01%.
• Dynamic Pressure Compensation: Adjust packing pressure during vulcanization shrinkage (10–15% pressure drop) to maintain dimensional stability. For instance, silicone membranes achieved ±0.005 mm thickness uniformity via staged packing (100 MPa → 80 MPa).
• Environmental Control: Use positive-pressure airflow systems and electrostatic curtains to maintain cleanroom particle counts (<352,000/m³ for ≥0.5 μm), meeting USP <88> Class VI standards.

2.4 End-to-End Quality Traceability

• Sterilization Resistance: Add 0.1–0.3% hindered amine light stabilizers (HALS) to γ-ray-sterilized (25 kGy) products, improving tensile strength retention from 78% to 92%.
• Accelerated Aging Testing: Simulate 5-year usage via 85°C/85%RH, 500-hour tests to ensure implantable devices maintain volume resistivity >10¹⁴ Ω·cm.
• Batch Management: Establish full traceability from raw materials to finished products, recording key parameters like shrinkage and molecular weight for dynamic process adjustments.

3. Industry Case Studies

Case 1: PPSU Surgical Handle Precision Molding
Changzhou Ruilu Plastics utilized custom high-temperature injection machines (330–360°C barrel temperature) and ultra-precision molds (±0.003 mm tolerance) to mass-produce PPSU surgical handles. By optimizing venting (vacuum assistance: -0.09 MPa) and cooling, deformation rates dropped from 1.2% to 0.3%, meeting FDA and ISO 13485 standards.

Case 2: Defect-Free LSR Microfluidic Chip Production
A company achieved mass production of LSR microfluidic chips (50 μm channel width) through:

1. Ultra-precision EDM mold manufacturing (electrode wear <0.01%);
2. Multi-stage injection control (5–10 mm/s + vacuum assistance);
3. Precision vulcanization (170°C × 25 s);
4. ISO Class 5 cleanroom conditions.
   Final products exhibited bubble rates <0.05%, flow resistance variation <2%, and 98% yield.

4. Future Trends

• In-Situ Real-Time Detection: Mold-integrated spectral analysis enables real-time monitoring of melt temperature and vulcanization, shifting defect detection to the molding stage.
• AI-Driven Optimization: Machine learning-based parameter auto-adjustment systems reduce setup time by >60%.
• Green Manufacturing: Bio-based and biodegradable materials will drive eco-friendly transitions in medical housing production.

Precision injection molding of small medical device housings integrates materials science, precision engineering, and quality management. By implementing full-cycle controls, intelligent monitoring, and continuous innovation, manufacturers can overcome technical barriers to deliver safer, more reliable medical solutions.
